General information

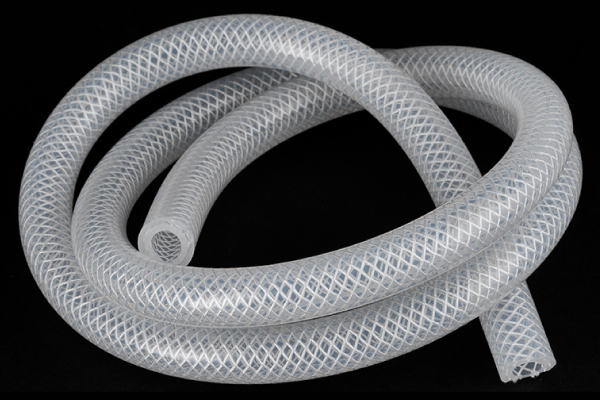

Transparent silicone rubber tube reinforced with braided fiber offers higher tolerance to pressure and longer durability. 100% premium grade of silicone material is used, and platinum cured. Hence, the non-toxic product with odorless, no taste properties is obtained. Unlike other curing process, the contamination problem during the usage is also eliminated. Moreover, another advantage is physical properties better than those of the non-reinforced product. The fiber used for the reinforcement is made of polyester. By including this braided fiber along the tube, it allows this silicone braided hose to be bent without kinks and no effect on the flow of liquid or gas inside. This product is certified to be safely used in food, beverage and healthcare industries.
Main Features
- Working temperature : -70 to +220°C
- Color : Transparent, other colors as customized
- Odorless and no taste
- Reinforced with braided polyester fiber
- Resistance to compression and fracture
- Can be bent to various angles without kinks
- Resistance to tearing
- Certified by FDA and LFGB
STANDARD SIZE
| Inner diameter | Outer diameter | Wall thickness |
| 6 mm | 13 mm | 3.5 mm |
| 8 mm | 15 mm | 3.5 mm |
| 10 mm | 17 mm | 3.5 mm |
| 13 mm | 21 mm | 4.0 mm |
| 16 mm | 24 mm | 4.0 mm |
| 19 mm | 27 mm | 4.0 mm |
| 25 mm | 35 mm | 5.0 mm |
| 32 mm | 42 mm | 5.0 mm |
You can ask for more information and order Food Grade Silicone Braided Hoses
