Ultra high pressure hose

General information

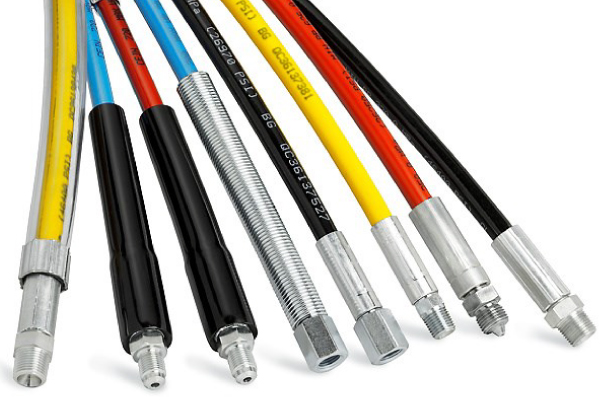

Ultra-high-pressure hose consists of 3 parts especially designed for ultra-high pressure. The inner tube is made from polyamide, polyoxymenthylene or polyamide fibers, while the cover is made of polyamide or high abrasion resistant polyurethane. The cover is pin pricked to avoid the trapping of gas, steam, and air under the hose carcass. These 2 layers are separated by the reinforcement layer that plays an important role for ultra-high-pressure resistance. This layer is a combination of spiral and high tensile steel wire braiding. Moreover, the hose comes with ferrules to maintain the highest integrity of both the components and the final assembly. Hence, this product is suitable for various application in industries, like industrial cleaning of tubes, reservoirs, containers and heat exchangers, and hydraulic tensioners.

Main Features

  • Material : Tube (polyamide, polyoxymenthylene, polyamide fibers)
  • Material : cover (polyamide, polyurethane)
  • Reinforcement : spiral and high tensile steel wire braiding
  • High abrasion resistance
  • High chemical resistance
  • Ultra-high-pressure resistance (around 1000 bar or higher)
  • Ferrule designs
Applications

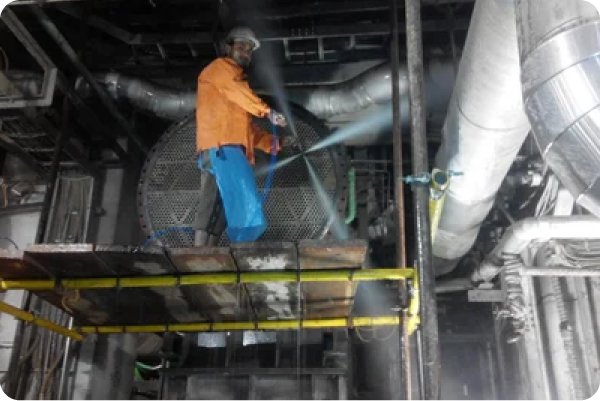

Industrial cleaning of tubes, reservoirs, containers and heat exchangers

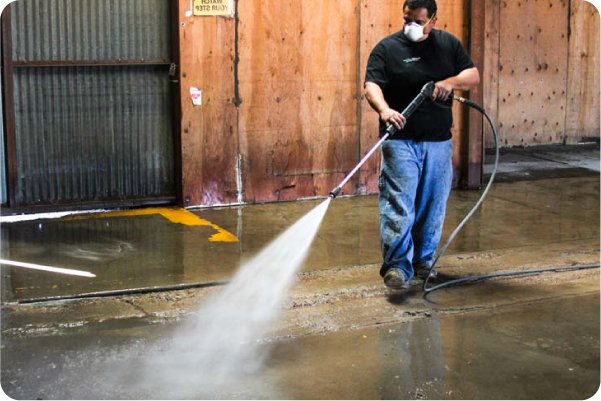

Surface preparation

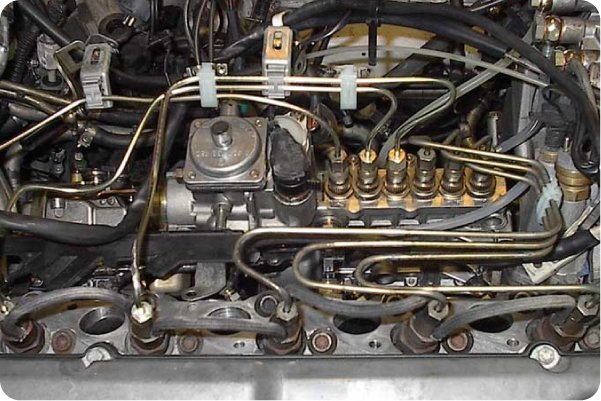

Checking the pressure of injection in Diesel engines

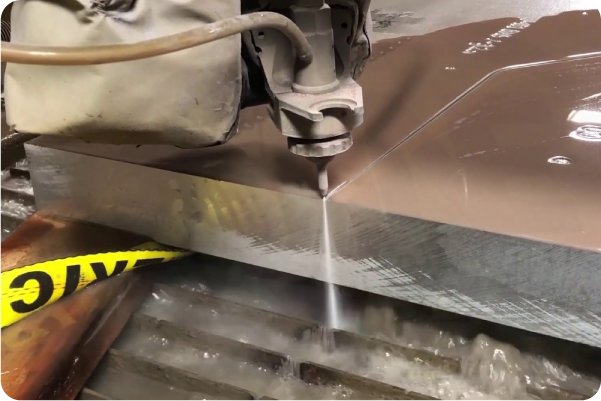

Waterjet cutting
Manufacturing industry

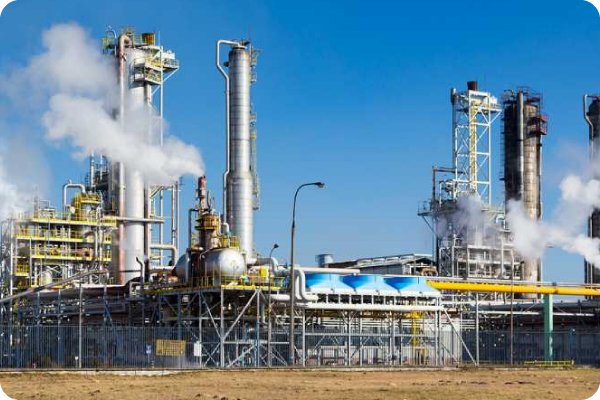

Chemical industry
Automotive industry

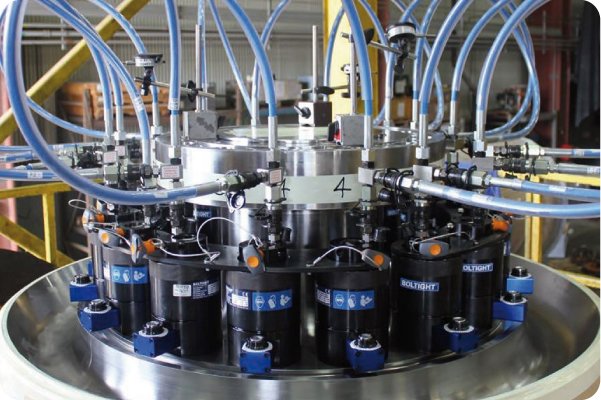

Hydraulic tensioners

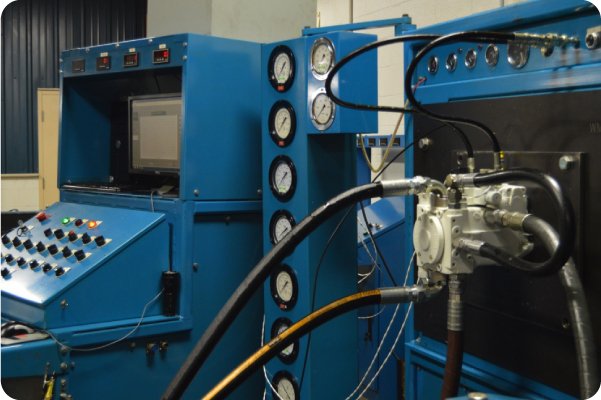

Hydraulic testing devices

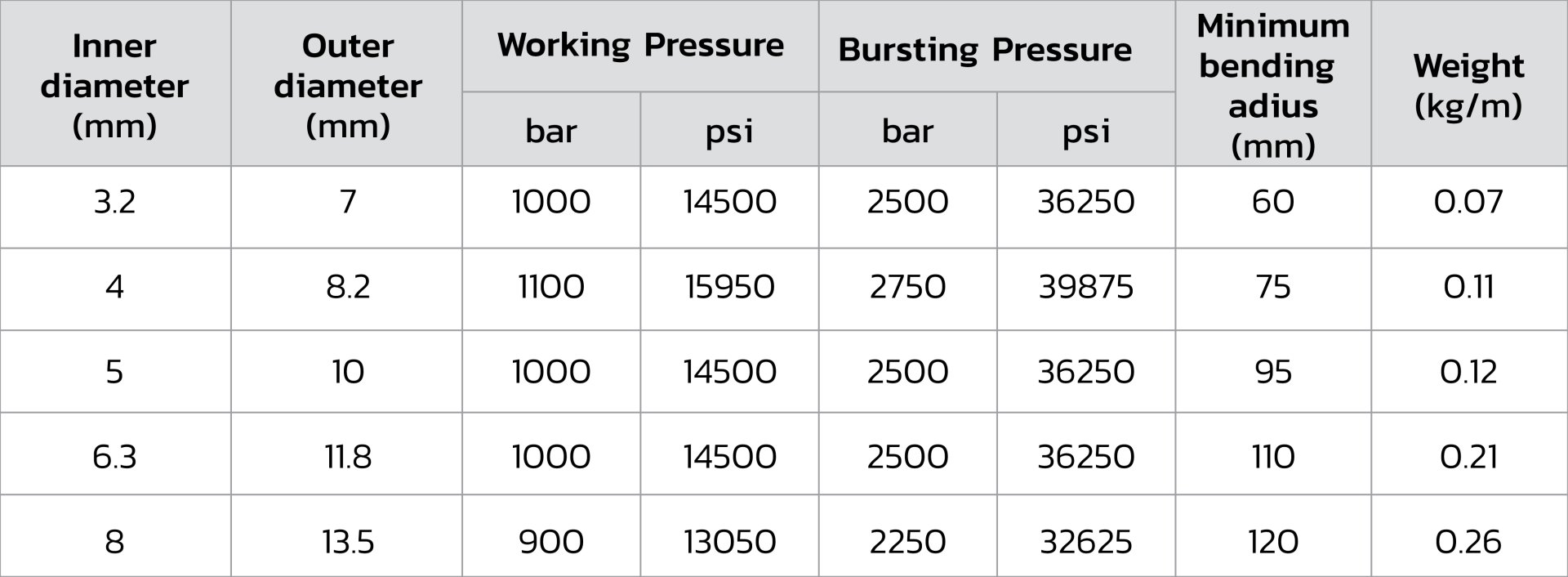

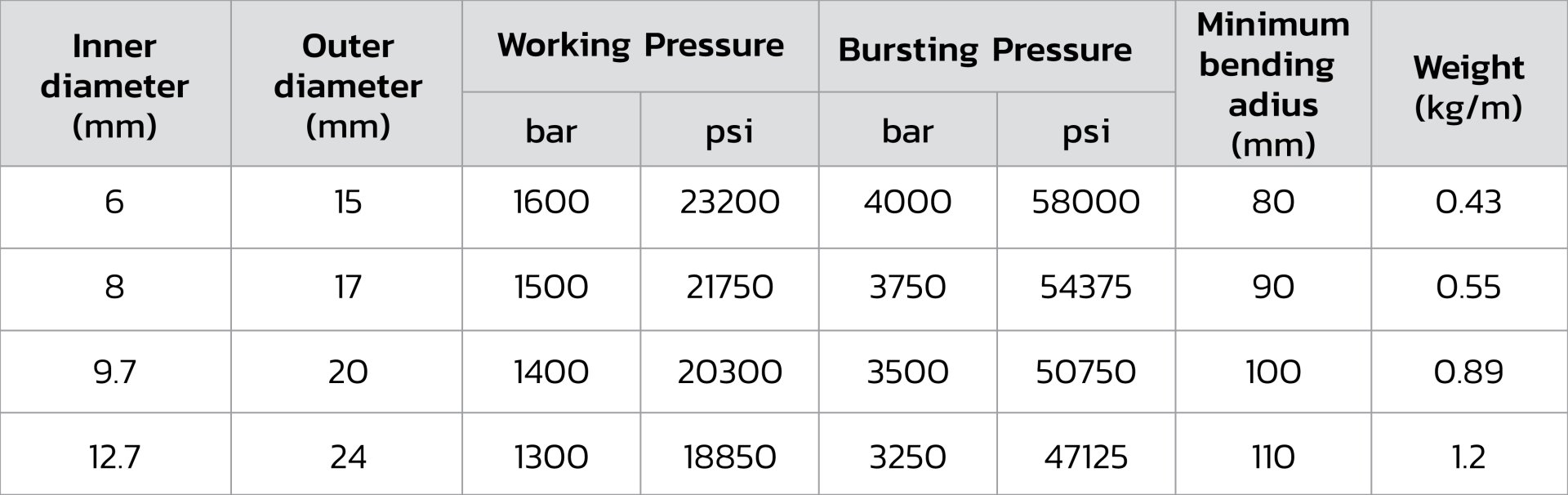

STANDARD SIZE

Inner tube : Polyamide

Reinforcement : Two spiral layers and one layer high tensile steel wire braiding

Cover : Pin pricked anti-abrasion polyurethane

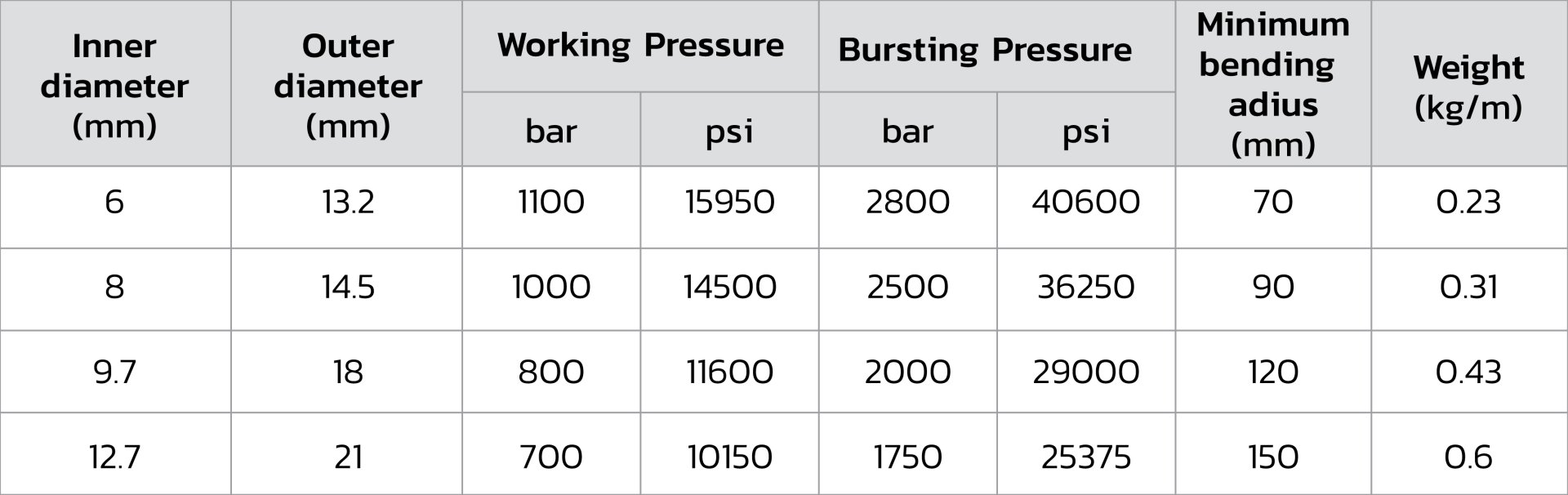

STANDARD SIZE

Inner tube : Polyamide

Reinforcement : Four spiral layers and two layers of high tensile steel wire braiding

Cover : Pin pricked anti-abrasion polyurethane

STANDARD SIZE

Inner tube : Polyoxymenthylene

Reinforcement : Two spiral layers of high tensile steel wire

Cover : Polyamide

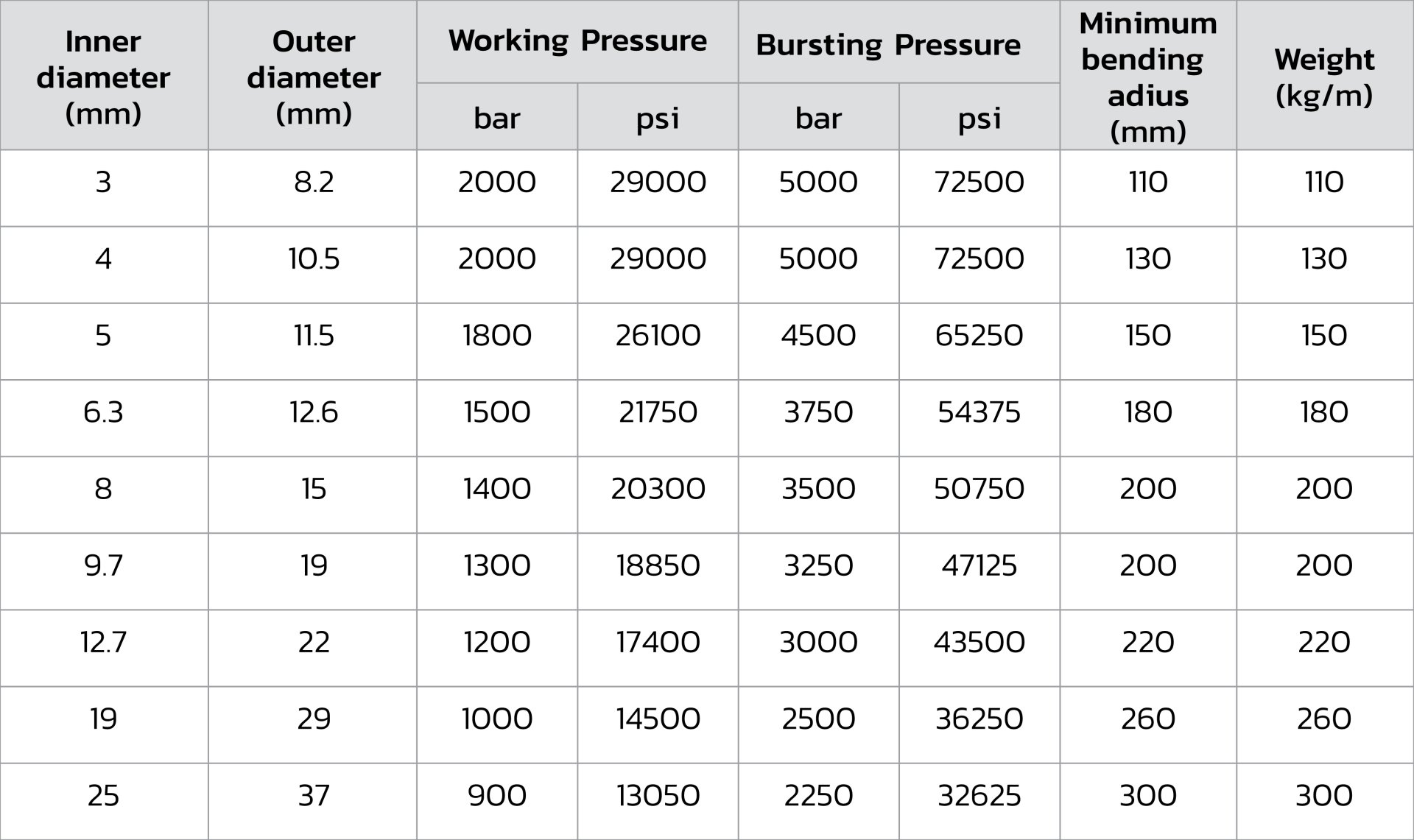

STANDARD SIZE

Inner tube : 3-8 : Polyoxymenthylene, 10-25 : Polyamide ie fibers

Reinforcement : Four spiral layers of high tensile steel wire

Cover : Polyamide

You can ask for more information and order Ultra high pressure hose
