PVC EDGE TRIM

Feature

  • Lightweight and Flexible
  • Highly Durable and Good Impact absorption properties
  • Resistant against Flammability
  • Oil and chemical resistant
Applications

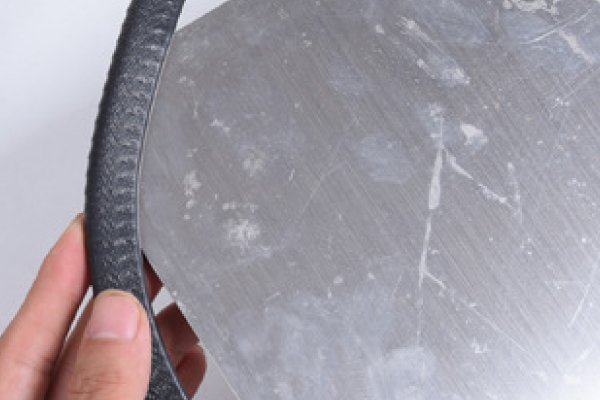

Edge Protection

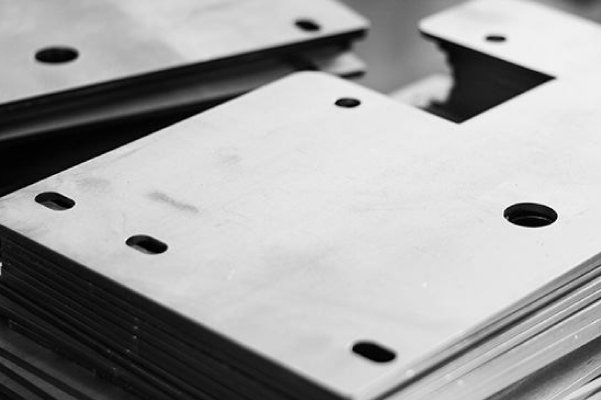

Sheet Metal Products
Fibreglass
Utility Trailers
Helmets
Boats

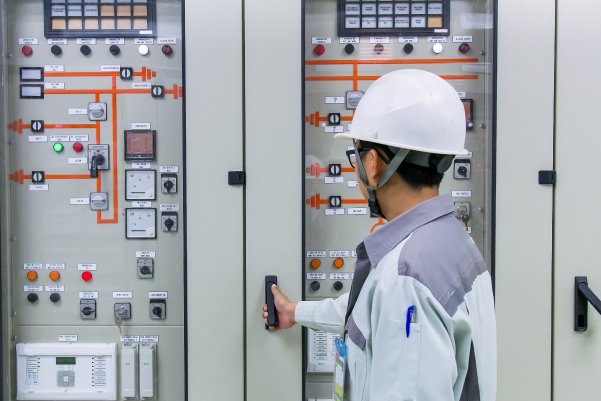

Electrical Cabinets
Furniture
Playground Equipment
Golf Carts
Safety Tool and Many More

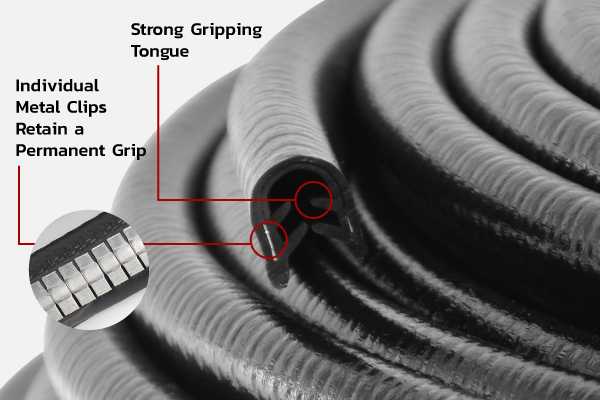

PVC EDGE TRIM are manufactured and distributed under the brand “AlphaCoSeals” are seals with a cross-sectional shape of “U-Channels” that act as a cut-resistant, shock-resistant seal, reducing the risk of injury from sharp edges. Also to add order and beauty. Reinforced with rustproof steel strengthen The seal is stable Comes with a lock (Gripping Tongue) to help hold and install more easily Can be bent along the edges and different radii without having to use glue Made from high quality PVC materials that remain flexible, shockproof, lightweight, durable. Resistant to water, chemicals, UV Ozone, environment resistant It is also resistant to spreading fire. Suitable for both indoor and outdoor use, such as electrical cabinet seals, cut-proof seals, bus window seals, boats, helmets, etc.

Technical Data

  Properties   Values
  Product Name  PVC Edge Trim
  Material  PVC / Steel
  Hardness   70+/-5 Shore A
  Length/Roll  50 M.
  Working Temp.  -15 to +65°C
  Density (Specific Gravity)  1.35+/- 0.05
  Tensile strength  >10 MPa.
  Elongation at Break  >200%
  Color  Black or as per Spec.
  Texture  Smooth / Basket Weave / leather / Pebble / Coarse / Sand or as per Spec.
  Material Cer.  UL94

PVC EDGE TRIM

New
Best Seller

RW-PV-007

RW-PV-007 U-Channel Seal (Edge Trim) – A Top Choice for Industrial Applications! This high-quality seal is perfect for frame or panel edges with thicknesses of 1-6 mm. Featuring a double-layer Gripping Tongue for a secure fit without adhesive, it’s crafted from durable PVC, offering impact resistance, moderate chemical resistance, and flame-retardant properties. Lightweight and easy to install, its sleek Basket Weave design adds a polished and professional finish to any application.

Sold 0 items

0 THB ฿0




New
Best Seller

RW-PV-018

PVC EDGE TRIM Cut-proof seal RW-PV-018, seal, size 9 X 12 mm, produced with PVC raw materials, suitable for use with frames with a thickness of 1-4 mm

Sold 0 items

0 THB ฿0




New
Pre-Order

RW-PV-027

PVC EDGE TRIM Cut-proof seal RW-PV-027, seal, size 10 x 14 mm, produced with PVC raw materials, suitable for use with frames with a thickness of 1-4 mm

Sold 0 items

0 THB ฿0




New
Best Seller

RW-PV-034

PVC EDGE TRIM Cut-proof seal RW-PV-034, seal, size 8 X 10 mm, produced with PVC raw materials, suitable for use with frames with a thickness of 1-3 mm

Sold 0 items

0 THB ฿0




New
Best Seller

RW-PV-035

PVC EDGE TRIM Cut-proof seal RW-PV-035, seal, size 8 X 13 mm, produced with PVC raw materials, suitable for use with frames with a thickness of 1-2 mm

Sold 0 items

0 THB ฿0




New
Best Seller

RW-PV-036

PVC EDGE TRIM Cut-proof seal RW-PV-036, seal, size 10 X 14.5 mm, produced with PVC raw materials, suitable for use with frames with a thickness of 1-4 mm

Sold 0 items

0 THB ฿0
